Infrastructure

The floor where
precision is made.

Since 2022 we've worked with Rucha Engineering, Mysore, as a reliable supplier of automobile parts and structural components — backed by hydraulic, PLC-controlled, high-tech machinery.

Our Capabilities

Six disciplines,
one production line

01 Tube fiber laser cutting in action, sparks flying

Tube Laser Cutting

K-Series tube fiber laser, 1500W–50,000W, cutting round, square, rectangular, channel and I-beam profiles from 10mm to 120mm OD.

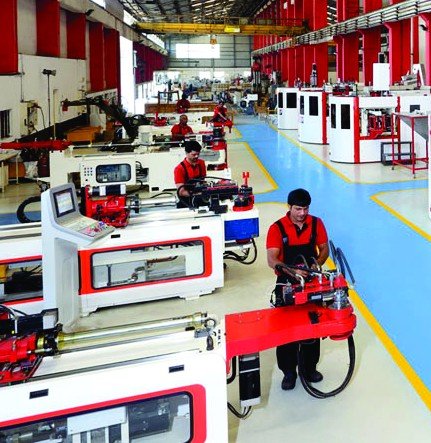

02 CNC tube bender in operation on the production floor

CNC Tube Bending

3-axis and 5-axis hybrid benders, 30 OD to 65 OD, TNC 3X to TNC 5X, with spring-back compensation and remote diagnostics.

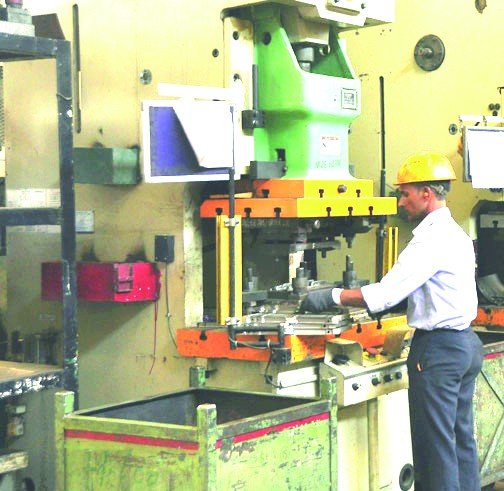

03 Operator running a mechanical press machine in the press shop

Press Shop

Mechanical presses at 50/60/100 ton and pneumatic presses at 100 ton, engineered for sheet metal parts with full safety guarding.

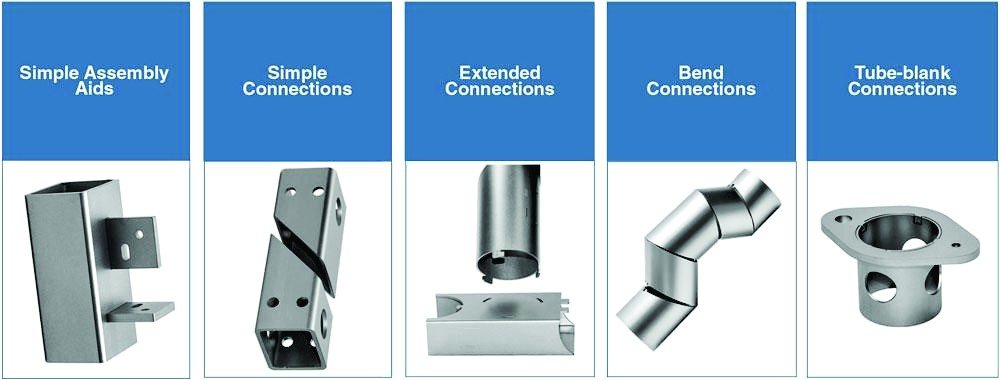

04 Types of tube connections and assemblies produced

Welding & Fabrication

Precision welding and structural fabrication of tubular components and assemblies for the automobile sector.

05 Special purpose twin station saw cutting machine

SPM Development

Special purpose machines for pipe cutting, notching, forming and metering — fully PLC controlled for mass production quality.

06

Quality Control

Dedicated inspection and metrology, underpinned by TPM culture — the discipline behind every TVS-approved part.

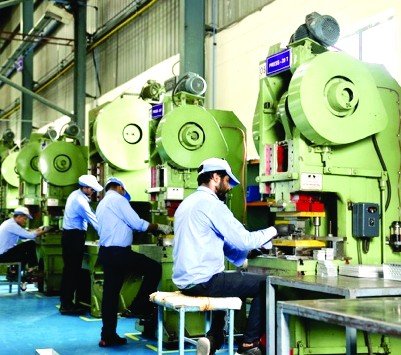

Mechanical press machines in the press shop, safety-marked floor
Press Shop — Mechanical Press Line

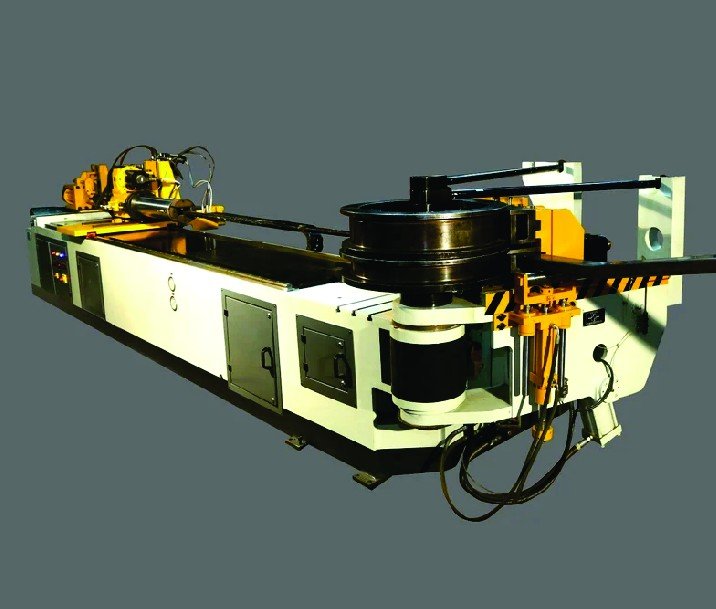

Heavy-duty CNC hybrid tube bending machine
65CNC3X Hybrid Tube Bender
CNC Tube Benders — Hybrid SeriesSpec Sheet
ModelCapacity (MS)Bending RangeMax CLRDrive System
30CNC3X32mm × 2mm0°–180°120mmAC Servo + Servo Hydraulic (Hybrid)
38CNC5X338mm × 2.64mm0°–180°180mmAC Servo + Servo Electric Hybrid
65CNC3X65mm × 3mm0°–180°250mmAC Servo + Hybrid Hydraulic Pump
Mechanical press machine operating on the floor
Mechanical Press Line
Pneumatic press machines, operators at work
Pneumatic Press Bank

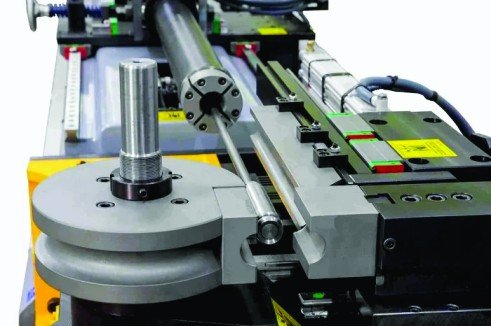

CNC hybrid tube bending machine head
CNC Bender — Close Detail

Our Fiber Lasers

K-Series Tube Fiber
Laser Cutting Machine

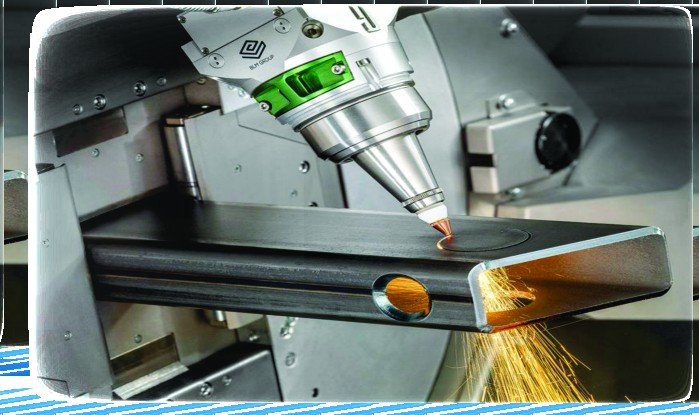

Fiber laser cutting a metal tube, sparks flying from the cut
Precision Cut — Live on the Floor

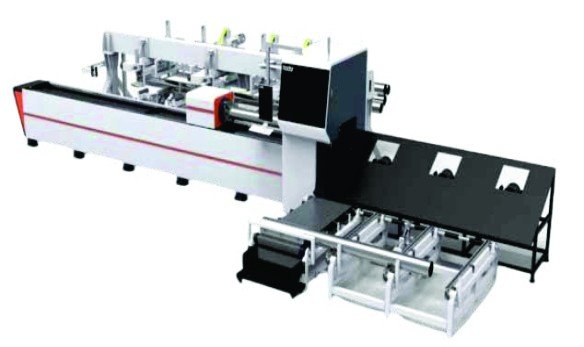

K-Series tube fiber laser cutting machine, full line
K-Series Tube Fiber Laser

Key Features

  • Maximum chuck speed: 130 r/min
  • Maximum feeding speed: 100 m/min
  • Ultra short tail material: 45mm — reduces scrap, improves utilization
  • Clamping response: 2 seconds, high-speed pneumatic chuck

Automation Options

  • Automated feeding rack — prevents tube fluttering
  • K-Loader — automatic material feeding system
  • K-Trans — automatic loading module for round, square & rectangular tubes

Safety & Reliability

  • Edge avoidance protection — prevents collision due to workpiece warping
  • Chuck avoidance design — shortest safety distance, maximizes material usage
  • Wireless touch handle (MANGO) — easy one-handed control

Special Purpose Machines

  • Processes handled: pipe cutting, notching, forming, metering cutting
  • All machines hydraulic-based, fully PLC controlled
  • High accuracy, repeatability and reduced rejection rate

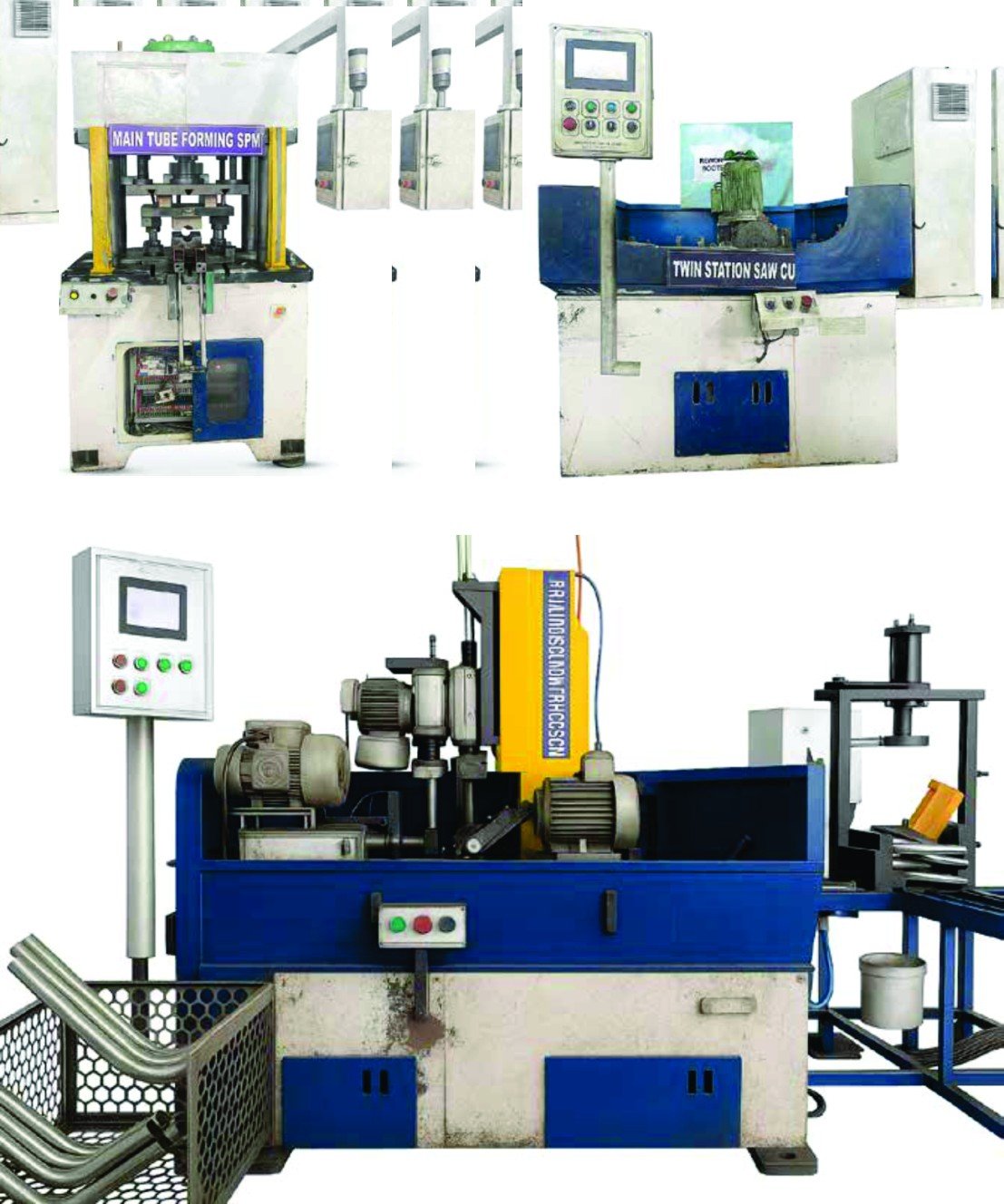

Special purpose machine for tube forming
Main Tube Forming SPM

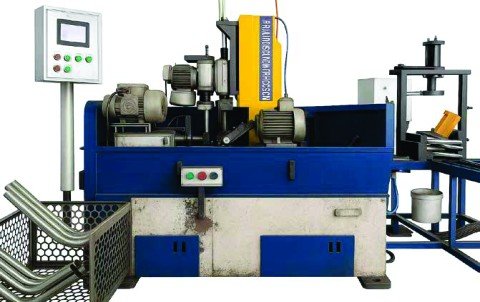

Special purpose machine, PLC controlled
SPM — PLC Controlled Line
